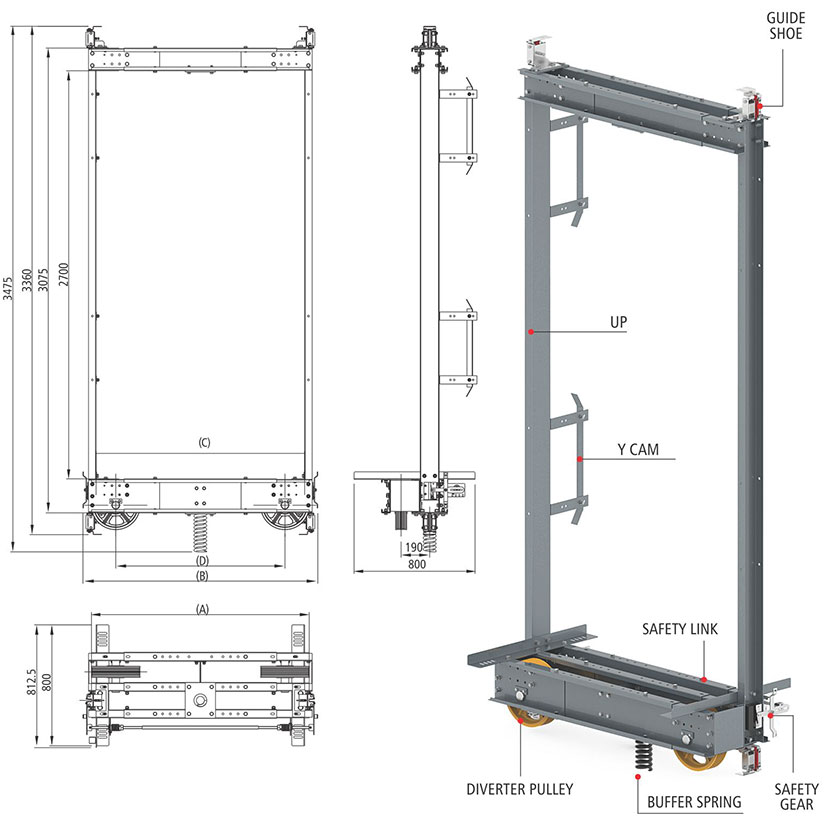

Car Frame 2:1D.B.G - 1140 To 1440 MM
Car Frame Data
| A (mm) | 1140 | 1190 | 1240 | 1290 | 1340 | 1390 | 1440 |
|---|---|---|---|---|---|---|---|
| B (mm) | 1255 | 1305 | 1355 | 1405 | 1455 | 1505 | 1555 |
| C (mm) | 1080 | 1130 | 1180 | 1230 | 1280 | 1330 | 1380 |
| D (mm) | 820 | 870 | 920 | 970 | 1020 | 1070 | 1120 |
D.B.G – Distance Between Guide Rail
All dimensions are in mm.

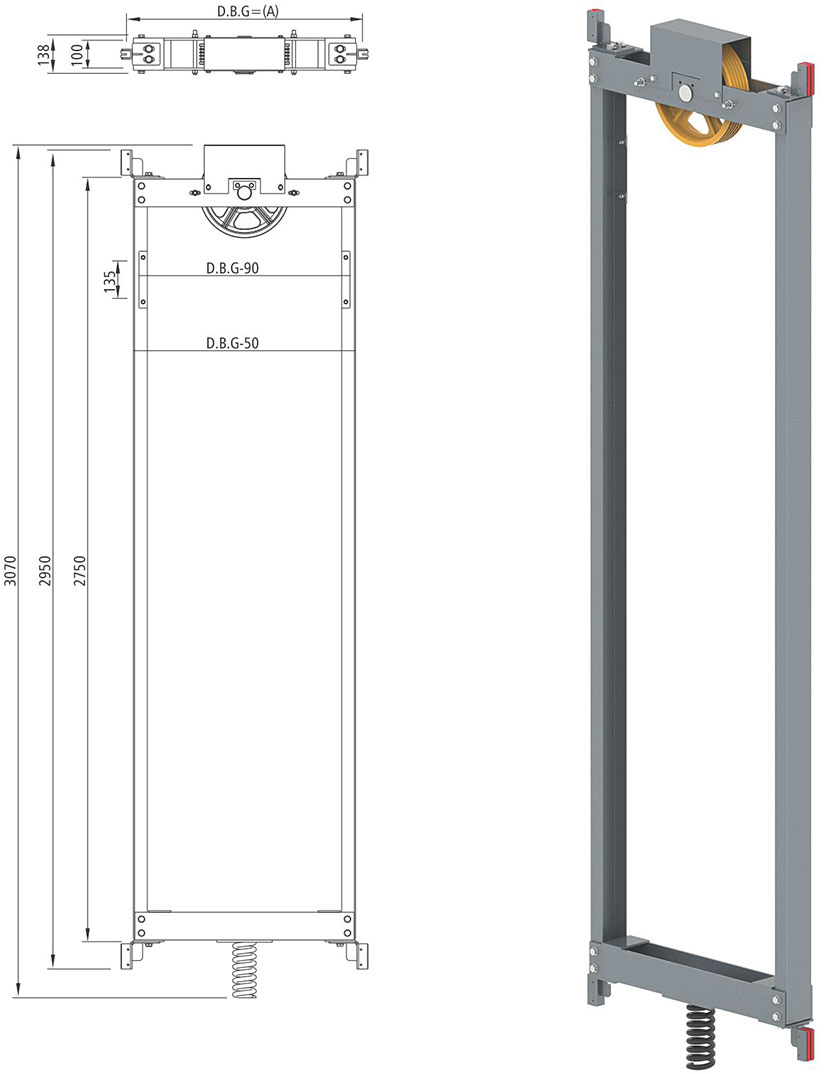

Counter Frame 2:1D.B.G - 800 / 850 / 900 MM
Various D.B.G.
| A | 800 mm | 850 mm | 900 mm |
|---|
D.B.G – Distance Between Guide Rail
All dimensions are in mm.
