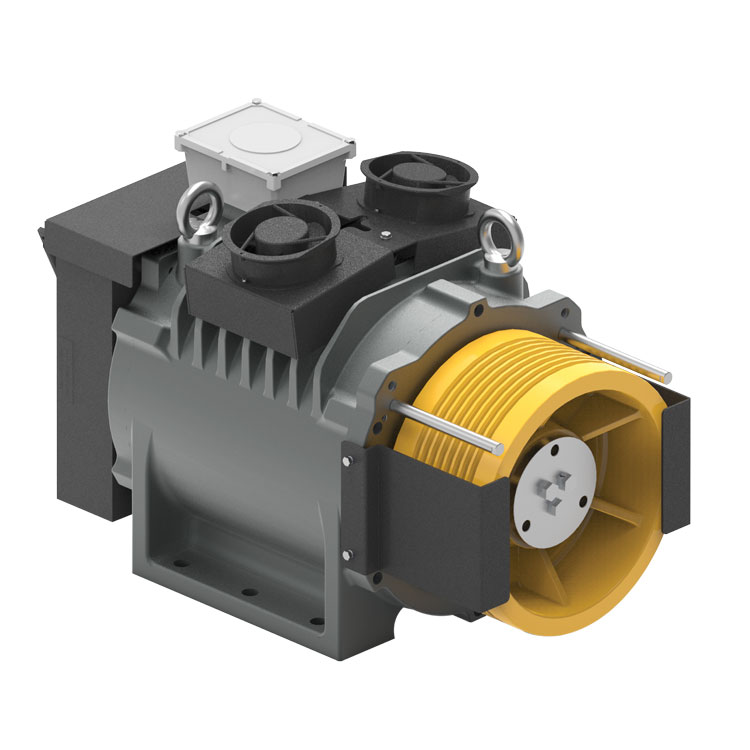

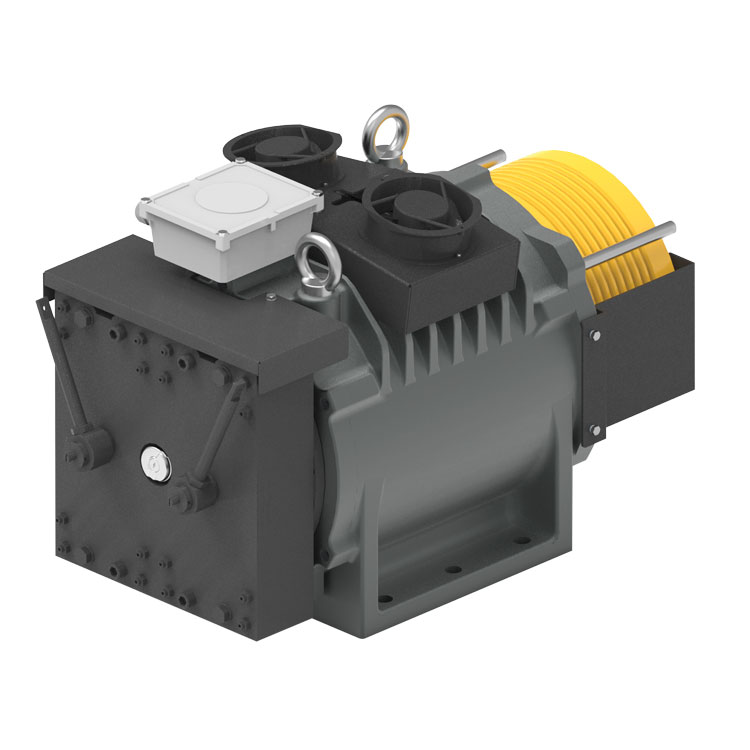

MRL 180 Degree Wrap
Description
Roping
1:1
Max. Sheave shaft Load
21500 lbs / 9752 kg
Max. Elevator Capacity 100%
4500 lbs / 2041 kg
Brake Torque
at Sheave (125%)
1264 ft-lbs / 1713 Nm
Machine Weight
1770* lbs / 803* kg
* Weight of machine is varies
according to selection of
sheave, Motor & Drive system.
CSA B44.1/ASME A17.5 Certification
